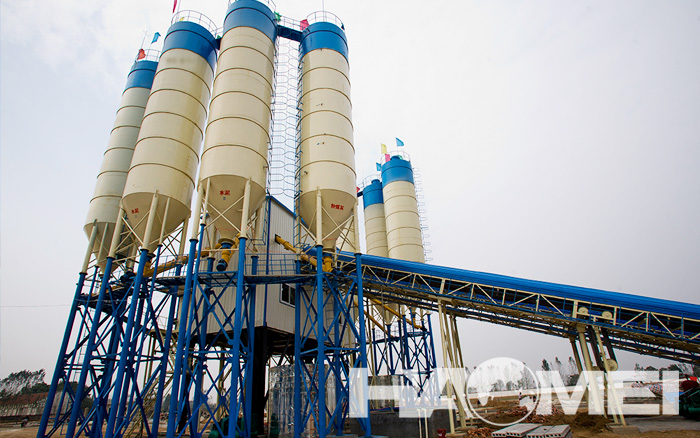

HZS120 Stationary Concrete Batching Plant

Place of Origin: Henan, China (Mainland)
Brand Name: HAOMEI
Model Number: HZS120
Condition: New
Capacity: 120m3/h
Main Mixer: JS2000
Power of Main Mixer: 74kw
Feeding Mode: Conveyor Belt
Mixing Time: 60s
Max Aggregate Size: 60/80mm
Discharging Height: 3.8m(for customers choice)
Aggregate Weighing Precision: 2%
Cement Weighing Precision: 1%
Water Weighing Precision: 1%
Additive Weighing Precision:1%
Control Mode: Automatic Control System/Central Console Control SystemTotal Power: kw

Detailed Product Description of HZS120 stationary concrete batching plant:
This plant is Haomei's newly developed products on its many years' experience of producing concrete mixing equipments combined with international top technology and advantages and technicques of advanced machine types both in China and abroad in recent years. It is the only product in the same field in China that achieves domestic leading level in general index and achieves international advanced level in such aspects as productivity, noise control, environmental production, etc. Thus it was chosen as one of the NATIONAL KEY NEW PRODUCTS in 2006.

Main features of HZS120 stationary concrete batching plant:
• Adopt combined structure and modular unit, convenient to install and remove;
• Mixing and aggregate lifting system adopt JS2000 double-shaft compulsory concrete mixer which offers high quality and efficient mixing;
• Aggregate batching system adopts PLD2400 concrete batcher which offers efficient and accurate measurement;
• Powder lot is electronic measured, highly accurate dosing;
•Water is flow-metering, simple and practical, highly accurate dosing.

Please note:
1. The total power doesn't include the power of cement screw;
2. Non-standard design could be made according to clients' demand;
3. The above-mentioned data could be changed due to the designing improvement, please check the updated configuration when purchasing.
